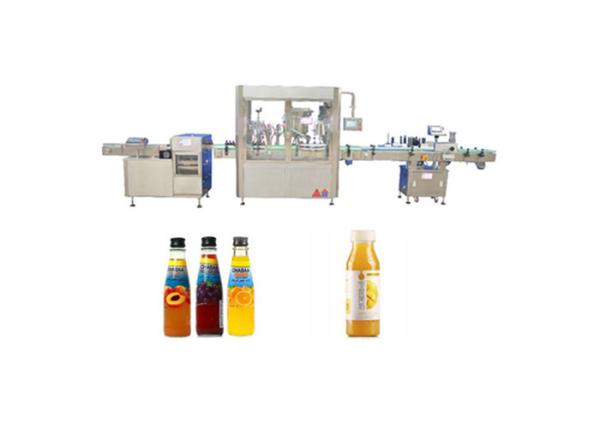

Automatic Glass Bottle Sauce Liquid Filling Machine
Application
The production line is mainly used for syrup, juice, wine, beverage, soy sauce, vinegar, cod-liver oil, plive oil, essential oil, hair oil, ink, disinfectant, injection, and so on various liquid fully automatic filling and production.
Workflow
bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
Technical parameter
| Model | YB-YG4 liquid pharma machinery filling machine for syrup |
| Applicable specifications | 50-500ml (other volume can be customized) |
| Filling head/nozzles | 4 filling nozzles |
| Production capacity | 10-40 bottles / min |
| Filling accuracy | ±1%(depends on product) |
| Pass rate | ≥98% |
| Power supply | 1Ph. 220V , 50/60 Hz |
| Total Power | 3.0 kw |
| Net weight | around 1200kg |
| Total dimension | L6000xW1500xH1900mm |
FAQ
Q: Are you a factory or trading company?
A: Our machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 12 years, and now we have our own brand and own designed machines for sale!
Q: How long need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q: Why should you choose our packing and filling machine ?
A: We have been specialized in filling and packing machine for more than 12 years,nd until now have exported machines to more than 30 countries.
Q: Can you provide after-sale service ?
A: Yes, sure.We have engineers available to service overseas .
Q: Can i visit your factory and send team for learning and inspect ?
A: Yes, sure.We will do our best to teaching you how to use the machine.
Q: What is our advantages?
A: 1. Competitive price
2. Excellent technical support
3. Best service
Machine Details
1. 4 filling nozzles
2. capping
